Ampilifers ( PAD-250 )

The PAD-250 Mixer Amplifier with USB and BT. The PAD-250 mixer amplifier is a professional tool with a sleek industrial look, designed and built for demanding commercial sound applications. The latest technology is built in, which significantly reduces size and weight, and all amps are highly efficient, with Colling fan, and simple to install and operate.

quantity Enquiry Form

Key Features:-

Output power is 250W
Frequency Response: Mic: (200Hz - 18KHz) Line : (100Hz - 19KHz)
TDH @ 1KHz less than 1%
Input Sensitivity : Mic Input: -40dB (10mV) Line: -8dB(400mV)
Input Interface : Mic 1:6 35mm, Mic 2/Line 3: XLR/6.35mm.Line 1& 2 RCA.
Output Interface : 4-16Ohms, 70V, 100V, 6-Zones 100V
Signal to Noise Ratio : Mic: >80dB, Line: > 85dB
Power Supply: 110/220V AC
Dimensions WxHxD: 484x89x340mm
Rack PA amplifier

Download Pdf: Ampilifers ( PAD-250 ) Category: Professional Speaker Tags: Speaker, Ampilifers

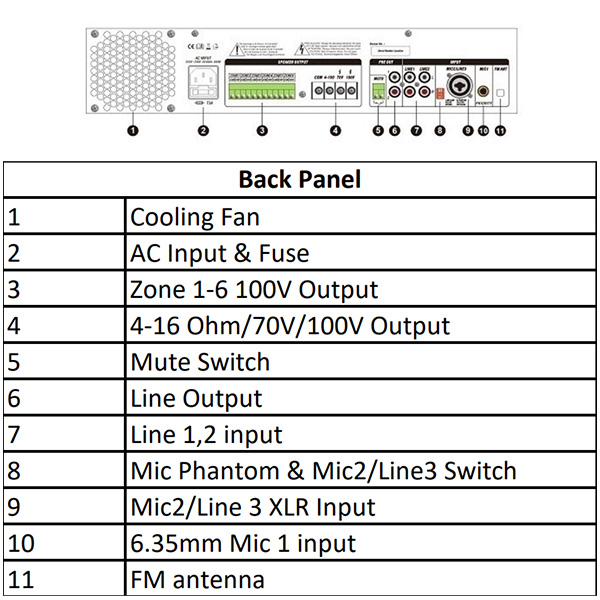

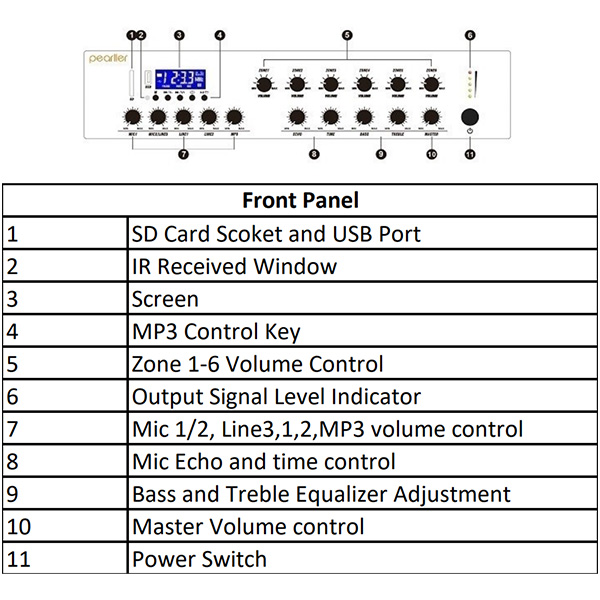

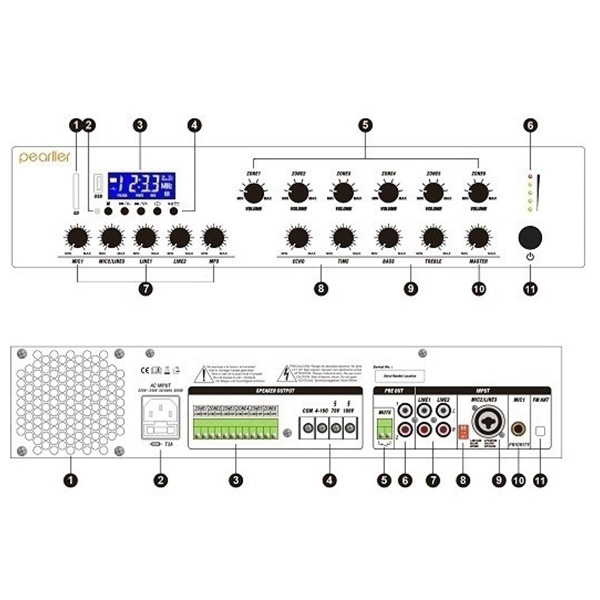

Front Panel		Back Panel
1	SD Card Scoket and USB Port	1	Cooling Fan
2	IR Received Window	2	AC Input & Fuse
3	Screen	3	Zone 1-6 100V Output
4	MP3 Control Key	4	4-16 Ohm/70V/100V Output
5	Zone 1-6 Volume Contro	5	Mute Switch
6	Output Signal Level Indicator	6	Line Output
7	Mic 1/2, Line3,1,2,MP3 volume control	7	Line 1,2 input
8	Mic Echo and time contro	8	Mic Phantom & Mic2/Line3 Switch
9	Bass and Treble Equalizer Adjustment	9	Mic2/Line 3 XLR Input
10	Master Volume control	10	6.35mm Mic 1 input
11	Power Switch	11	FM antenna
