Wall Speaker ( SP-WS530R )

home
Wall Speaker
SP-WS530R

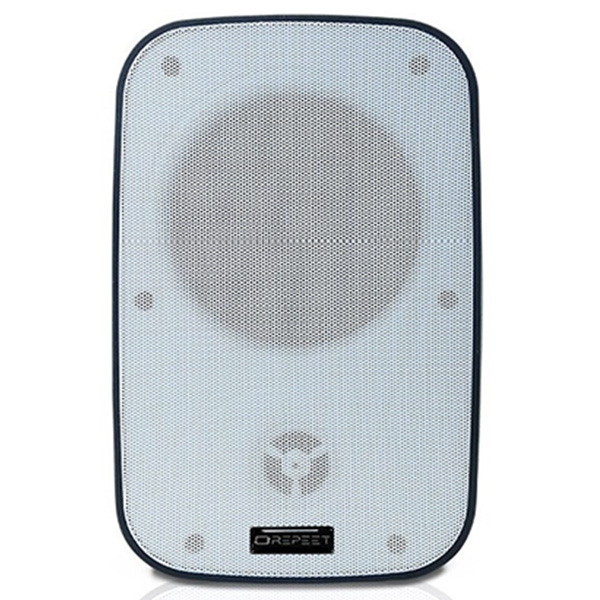

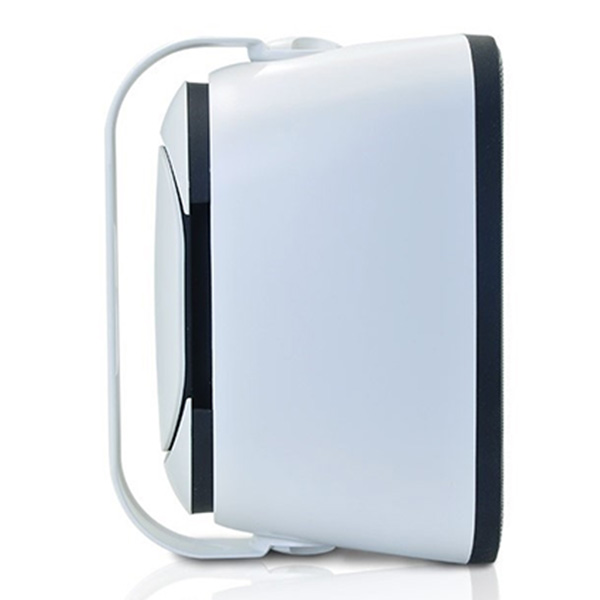

Wall Speaker ( SP-WS530R )

Ultra-Compact Indoor/Outdoor Wall Mount speaker for BGM

Two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.

quantity Enquiry Form

Key Features:-

5” woofer with woven PP cone.
1” x 1 nos of diaphragm tweeter
100 Watt power handling in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer.
Sensitivity (1W/1m): 85dB
Maximum SPL (1m) 105 dB ave. Continuous Pink Noise (101 dB peak)
Frequency Response: 57Hz-20KHz
Coverage Angle 100°H x 100°V
Material: ABS
Waterproof Rating: IPX66
Net Weight: 2.60kg
Shipping Weight: 3.85kg for the pair-pack (for 2 speakers)
Color: white or black
Dimensions (H*W*D): 258 x 168 x 163 mm ; (6.0 in) deep total when mounted on InvisiBall wall-mount bracket.

Download Pdf: Wall Speaker ( SP-WS530R ) Category: Professional Speaker Tags: Speaker, Ampilifers

Two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes it an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, Swimming pool, Outdoor garden and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Drivers :-

LF: 5 in, Polyproplene cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 1 in, PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight voice coil former.

Enclosure :-

High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.

Grille :-

Highly zinc-plated, finished in durable TGIC polyester powdercoating. Available with Weather protection multilayer foam and tight-weave mesh vapor barrier backing.

Outdoor Capability :-

IPX66 per IEC529 Weather protection grille, Exceeds for humidity, salt-spray, temperature & UV. Weather protection grille for breaking up driving rain and for especially difficult environments.
